2LB4MB 65° 12/14dBi+3.5GHz TDD Antenna

Heneral

Mga Parameter

Saklaw ng dalas (MHz):

3300-3800(P1)

Polarisasyon:

±45

Electrical downtilt (°):

2-12 patuloy na adjustable

Grounding:

DC Grounded

Uri ng Konektor:

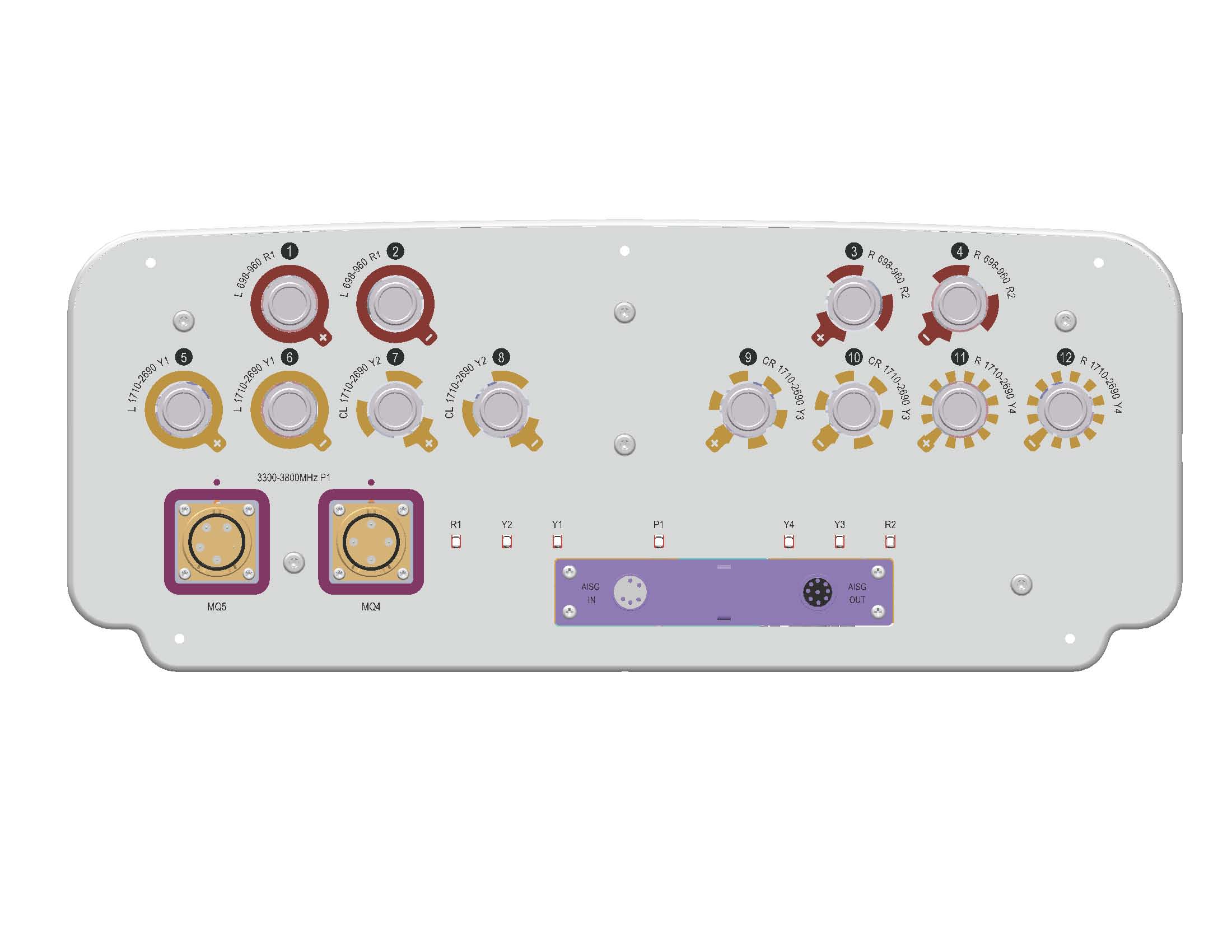

1xMQ5,1xMQ4

Pag-calibrate at

elektrikal

mga parameter

Coupling factor sa pagitan ng calibration port at bawat antenna port (dB):

-26±2

Max Amp/phase Deviation:

<1.2/ 12°

VSWR:

<1.5

Max. Power Bawat Port (W):

40

Paghihiwalay (dB):

>20

Radiation

mga parameter

Isang Hanay

Pahalang na 3dB Beamwidth (°):

70±10

Vertical 3dB Beamwidth (°):

8.6

Front to Back Ratio (dB):

25

Gain (dBi):

14.1±0.7

Cross polar ratio (dB):

>15 (0°)/>6 (±60°)

Broadcast Beam

Pahalang na 3dB Beamwidth (°):

65±10

Gain (dBi):

15.6±0.5

Front to Back Ratio (dB):

25

Vertical 3dB Beamwidth (°):

8.6

Cross polar ratio (dB):

>15 (0°)/>6 (±60°)

1^st Upper Sidelobe Suppression (dB):

>14

Service Beam @ 0deg

Gain (dBi):

19.0±0.5

Pahalang na 3dB Beamwidth (°):

20

Pahalang na Antas ng Sidelobe (dB):

<-12

Cross polar ratio (0°) (dB):

15

Front to Back Ratio (dB):

25

Saklaw ng Dalas (MHz):

698-960(R1,R2)

1710-2690(Y1,Y4)

1710-2690(Y2,Y3)

698-806

806-880

880-960

1710

-2170

2300

-2490

2490

-2690

1710

-2170

2300

-2490

2490

-2690

Gain (dBi):

12.1

11.8

11.5

12.8

13.4

13.8

12.5

13.3

13.8

Pagkawala ng Pagbabalik (dB):

>14 (VSWR<1.5)

Polarisasyon:

±45°

Pahalang na 3dB beamwidth (°):

68

77

80

69

65

62

71

67

60

Vertical 3dB beamwidth (°):

28

20

19

17

15

13

18

15

14

Front to Back Ratio(dB):

>21

>21

>21

>25

>24

>24

>23

>24

>23

Electrical Downtilt (°):

2-16 Independently Continuously Adjustable

2-12 Malayang Tuloy-tuloy na Naaayos

Polarization Isolation (dB):

Polarization Isolation (dB):

>23

Interband Isolation (dB):

>23

Max. Power Bawat Port (W):

150

200

Intermodulation IM3 (dBc):

<-150 (2×43dBm)

Impedance (ohm):

50

Proteksyon sa Kidlat:

DC Grounded

Mga Dimensyon ng Pag-iimpake (mm):

1365x585x290

Net Weight/Bracket ng Antenna (kg):

24/5.9

Kabuuang Timbang ng Antenna (kg):

34.5

Natagpuan namin ang Materyal:

Fiberglass

Pipe OD (mm):

50-115

Mga Mounting Kit (Kasama):

BA.K.04.00069381, Adjustable Downtilt 0°-20°
