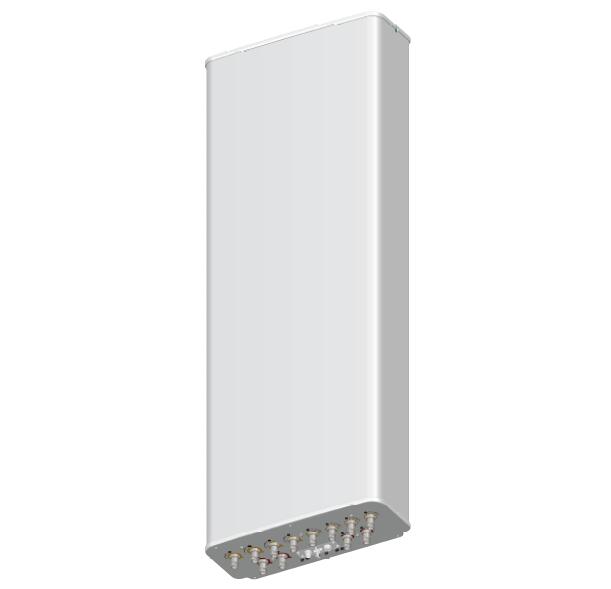

2LB4MB 65° 14/17.5dBi Multi-band Antenna

698-806

806-880

880-960

1710

-2170

2300

-2490

2490

-2690

1710

-2170

2300

-2490

2490

-2690

Gain (dBi):

13.2

±0.5

13.7

±0.5

14.2

±0.5

16.3

±0.5

17.3

±0.5

17.0

±0.5

16.0

±0.5

17.0

±0.5

16.7

±0.5

Pagkawala ng Pagbabalik (dB):

>14 (VSWR<1.5)

Polarisasyon:

±45°

Pahalang na 3dB Beamwidth (°):

70

65

60

68

62

58

68

62

58

Vertical 3dB Beamwidth (°):

19.5

18

16.5

7.5

6.0

5.3

7.5

6.0

5.3

Electrical Downtilt (°):

2-12Independently Continuous Adjustable

2-12 Malayang Tuloy-tuloy na Naaayos

1^st Upper Sidelobe Suppression (dB):

15

15

15

15

15

15

15

15

15

Ratio ng Harap sa Likod @180±30°(dB):

22

23

24

25

25

25

25

25

25

Cross Polar Ratio 0° (dB):

15

15

15

15

15

15

15

15

15

Cross Polar Ratio 60° (dB):

10

9

8

9

8

7

9

8

7

Intraband Isolation (dB):

>25

Interband Isolation (dB):

>25

Max. Power Bawat Port (W):

250

200

Intermodulation IM3 (dBc):

<-150(2×43 dBm)

Impedance (ohm):

50

Proteksyon sa Kidlat:

DC Grounded

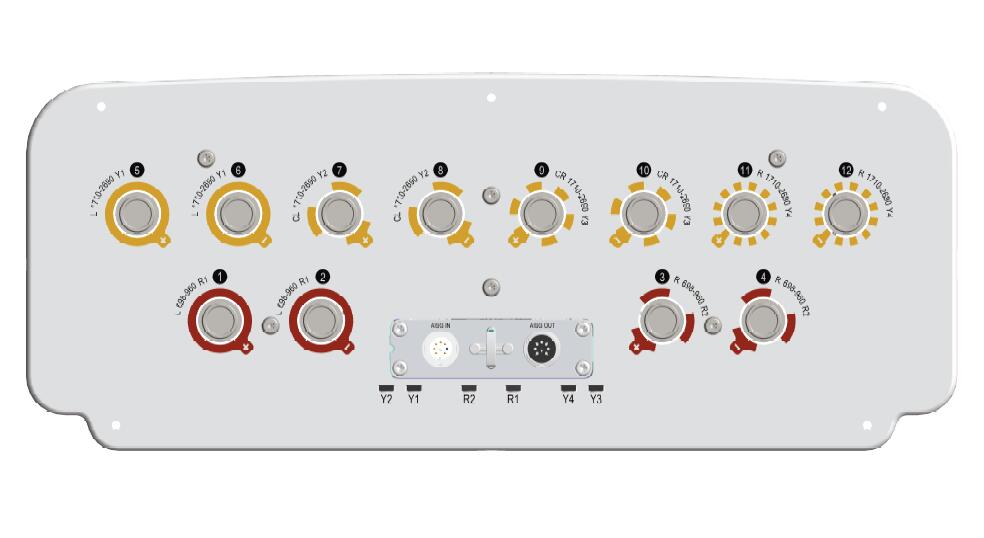

Uri ng Konektor:

12×4.3-10 Babae

Mga Dimensyon ng Pag-iimpake (mm):

1665×585×290

Net Weight/Bracket ng Antenna (kg):

27/5.9

Kabuuang Timbang ng Antenna (kg):

38

Natagpuan namin ang Materyal:

Fiberglass

Pipe OD (mm):

50-115

Mga Mounting Kit (Kasama):

BA.K.04.00069151 ,Adjustable Downtilt 0°-20°
